History of Iron Casting

May. 10, 2022

Have you ever thought about the history of iron casting? When did the ancients begin to dream of making objects out of molten metal? Even the best historians, archaeologists, and scientists may never really know. But maybe that's why history is so fascinating.

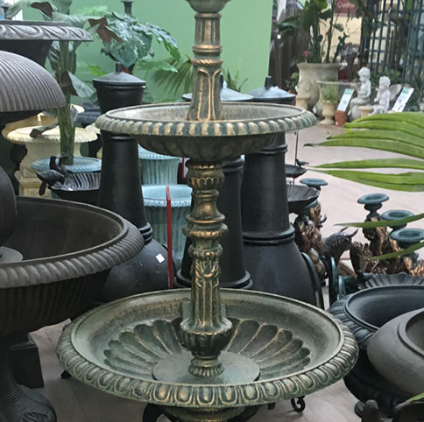

Cast Iron Garden Decoration

Cast Iron Garden Decoration

The world-first batch of castings

Some historians believe that cast iron dates back as far as 6000 BC in ancient China, while others believe that only copper and bronze castings were produced at this time. However, the evidence provided by archaeologists contradicts both views. One of the earliest examples of castings found by archaeologists in what was then called Mesopotamia was the copper frog dating back to 3200 BC. Although iron and other metals had been discovered, it was not until centuries later that they were melted down and poured into molds, such as a casting.

Archaeologists believe that iron was discovered by the Hittites in ancient Egypt between 5000 and 3000 BC. During this time, they used hammers or heavy hammers to make metal into tools and weapons. They found and extracted minerals from meteorites and used them to make spearheads, tools, and other trinkets. Between 2000 and 1200 BC, the Hittites developed a process for smelting iron - heating the ore for refinement - to increase its availability. For centuries, the production of iron was the secret of the Hittites, and it was not until about 1000 BC that Chinese metallurgists discovered the superiority and workability of iron.

Iron castings take root in China

The earliest examples of cast iron in ancient China are the four statues outside Zhong Yue Temple in Dengfeng. These statues were cast around 1024 BC. Prior to this, Chinese metallurgists worked with bronze and copper to make castings, which were mainly used in the country's agriculture. The iron plow underwent a revolutionary change when it was invented. This makes it easier for farmers to dig their fields.

One of China's greatest influences on the development of cast iron occurred in 645 BC when Chinese metallurgists began using sand molding. In the process, the sand becomes tightly wrapped around the object, forming mold. The molten metal is then poured into a mold to form a metal casting. The advantage of this method is that it is easy to mold various shapes and sizes. The drawbacks are the inevitable drawbacks and the fact that the process is rather laborious. This is the earliest known use of the process and represents China's significant contribution to the history of cast iron.

The invention of the blast furnace

Another Chinese innovation is the blast furnace. It is used in the smelting of industrial metals, usually pig iron, which is low quality, brittle, high carbon iron. It must be refined before it can be used to make steel. The term blast refers to the process of supplying fuel from the top by blowing hot burning air into the lower part of the furnace through pipes called tuyere.

The oldest blast furnace found by archaeologists dates back to the Han Dynasty of China in the first century BC. The use of the blast furnace did not spread to Europe until the 100s. Sweden was the first country to use the blast furnace, followed by France and Belgium in the 1300s, and The United Kingdom in 1491.

Iron castings were extended to Europe

In addition, cast iron was introduced to Europe in the 1400s. The earliest evidence of casting products in Europe is the cast iron pipes used to carry water at Dillenberg Castle in Germany. It was cast in 1455 and after that, in Burgundy, France, and England, cast-iron also used 16 centuries of cannons made during the reform process.

The first ironworks in the United States

In 1619, the Virginia Company of London established its first ironworks in North America. It's called Falling Creek Ironworks, and it's located near the James River. The colonists chose the site not only because of its proximity to mineral deposits but also because it provided a convenient source of water for electricity and transport-related needs. The remaining written records show that the facility was able to produce some iron. But historians believe that full production could not be achieved.

In 1642, Saugus Iron and Steel Plant, the first iron foundry in the United States, was opened near Lynn, Massachusetts. It was also where America's first cast-iron Saugus POTS were made. Saugus Steel Plant is now a national historic site because it was a landmark in manufacturing and the American Industrial Revolution.

Early efforts at steel making in Britain

Between 1700 and 1750, Britain was heavily dependent on imports of cast iron from Sweden because it could not rapidly expand its production capacity to meet the growing demand for cast iron. This was before the British industrial revolution. At the time, the steel industry consisted of small localized production facilities that had to be located close to their required resources, such as water, limestone, and charcoal. This is because there are limited resources to transport raw materials and manufactured goods.

At this point, the furnaces are small, which means their production capacity is very limited. Although the UK has rich iron ore reserves, the iron it can produce is low-quality, brittle pig iron, which has a lot of impurities, caused by charcoal-burning blast furnaces.

As a result, the availability of cast iron is very limited. Most of the demand is for wrought iron, which is cast iron after its impurities have been hammered. But it took a long time, and imported wrought iron was cheap. As a result, English iron was used only for cheap items such as nails. But iron would soon become the cornerstone of the industrialization of the British economy, and by 1800 it would be a major export.

Innovation drives the UK's iron foundry industry

The great influence of steel on Britain can be attributed to a series of innovations introduced in the 1700s. The first took place in 1709 when Abraham Darby became the first man to make iron from coke in a coke oven instead of charcoal. Coke is a solid fuel produced by heating coal without air and was a key element in the history of cast iron.

Coke is much cheaper and more efficient than charcoal. With the introduction of coke, it became possible and profitable to use larger furnaces, enabling mass production. Charcoal is too weak to support large amounts of iron, but coke is much stronger. While the challenge of brittle iron has yet to be solved, Darby's innovations have had a major impact on the industry and inspired many other advances.

The next innovation in the history of cast iron was the steam engine. It was invented in 1712 by A British man, Thomas Newcomen. At this time, steam engines were mainly used to pump water out of coal mines. Coal is a key part of the cast iron process, and therefore the invention is indispensable to the industry and industrialization of England.

Between 1770 and 1790 A Scottish inventor, James Watt, improved Thomas Newcomen's work by enabling steam engines to power machinery, locomotives, and ships. This further increases the speed and capacity of the industry to transport raw materials and manufactured goods.

James Watt's breakthrough came when he realized that the design of a steam engine wasted a lot of energy because it repeatedly cooled and reheated the cylinders. Watt introduced a design improvement, the independent condenser, which avoids this waste of energy and radically improves the power, efficiency, and cost-effectiveness of the steam engine.

In the end, Watt changed his engine and revolutionized the transportation industry, which has become a major constraint on steel manufacturing. Eventually, material transportation became more efficient and economical than ever before.

The invention of rolling technology

In 1783, Henry Cort developed two methods for extracting impurities from iron, converting it from pig iron to wrought iron, and allowing for the mass production of non-brittle iron.

Pig iron is a term used to describe coarse and brittle iron that comes directly from the blast furnace. In 1783, Cort patented the furrowed roller, which allowed iron bars to be made more quickly by a more economical method, a technique he called rolling. Previous methods used included hammering or cutting the rolled strip.

In 1784, Cort patented a hydration process that involved stirring molten pig iron in a furnace bed, in which fire and hot gases whirl over the metal to provide heat. This prevents the metal from coming into contact with the fuel. Circulating gases can remove carbon from iron.

As the iron is decarburized through the air, it becomes thicker, removing the "mashed" iron pellets from the more liquid impurities that remain in the furnace. Like the wrought iron, the molten iron is stronger and more malleable than pig iron and can be hammered and finished with a slotted roller invented by Cort. The drum helps to extrude impurities. In addition, by making iron into bars, the metal becomes easier to use as a finished product.

Cort's contribution to the industry allowed cast iron products to be produced on a large scale because removing impurities from pig iron did not require much time or labor.

Cast Iron Machine Body

Cast Iron Machine Body

Britain became the largest ironworks in Europe

Between 1793 and 1815, due to increased military demand, Britain's iron production quadrupled. The size of the blast furnaces has increased and the UK finally has the production capacity to meet demand.

However, in 1815, the War of 1812 ended and peace entered. With the end of the war, the price and demand for iron fell. But Britain has become the largest ironmaking plant in all of Europe. In addition, innovations in cast iron technology revolutionized its economy and way of life.

Improvements to iron casting safety

The next contributor to the evolution of iron casting is James Nasmyth, whose inventions not only increased operational economy, but more importantly, worker safety. However, we’ll let him tell you his story himself. The following is an excerpt from Nasmyth’s autobiography.

“I must here say a few words as to my Screw Safety Ladle. I had observed the great danger occasioned to workmen by the method of emptying the molten iron into the casting moulds. The white-hot fluid was run from the melting furnace into a large ladle with one or two cross handles and levers, worked by a dozen or fifteen men. The ladle contained many tons of molten iron and was transferred by a crane to the moulds. To do this required the greatest caution and steadiness. If a stumble took place, and the ladle was in the slightest degree upset, there was a splash of hot metal on the floor, which, in the recoil, flew against the men's clothes, set them on fire, or occasioned frightful scalds and burns.”

“To prevent these accidents, I invented my Safety Foundry Ladle. I applied a screw wheel, keyed to the trunnion of the ladle, which was acted on by an endless screw attached to the sling of the ladle; and by this means one man could move the largest ladle on its axis, and pour out its molten contents with the most perfect ease and safety. Not only was all risk of accident thus removed, but the perfection of the casting was secured by the steady continuous flow of the white-hot metal into the mould. The nervous anxiety and confusion that usually attended the pouring of the metal required for the larger class of castings was thus entirely avoided.”

“At the same time, I introduced another improvement in connection with these foundry ladles which, although of minor importance, has in no small degree contributed to the perfection of large castings. This consisted in hanging "the skimmer" to the edge of the ladle, so as to keep back the scoriae (slag, waste metal, or impurities) that invariably float on the surface of the melted metal. This was formerly done by hand, and many accidents were the consequence. But now the clear flow of pure metal into the moulds was secured, while the scoriae were mechanically held back. All that the attendant has to do is to regulate the inclination of the Skimmer so as to keep its lower edge sufficiently under the surface of the outflowing metal.”

“These inventions were made in 1838. I might have patented them but preferred to make them over to the public. I sent drawings and descriptions of the Safety Foundry Ladle to all the principal founders both at home and abroad, and I was soon after much gratified by their cordial expression of its practical value. The ladle is now universally adopted. The Society of Arts of Scotland, to whom I sent drawings and descriptions, did me the honour to present me with their large silver medal in acknowledgment of the invention.”

Nasmyth is unique because he is the first innovator we have discussed who was really focused on improving safety in the work environment. Other innovators were focused on improving the process of iron casting. Although Nasmyth did improve the efficiency and ease of the iron casting process, his number one priority was safety.

The birth of the steel industry

One of the most remarkable things about the iron casting industry is that it gave birth to the steel industry. One of the earliest forms of steel ever created was known as blister steel. It was produced in Germany and England in the 17th century through a process called cementation. In this process, charcoal and wrought iron were placed in a stone box and heated so that the iron could absorb carbon from the charcoal. Through repeated heating, the carbon content of the iron would increase and disperse evenly throughout the iron. Once cooled, the result was blister steel, which was more workable than pig iron due to its higher carbon content.

In the 1740s an English clockmaker names Benjamin Huntsman discovered that metal could be melted in a clay crucible and then refined, eliminating the waste metal that was left behind in the cementation process. His discovery came about during his attempts to develop higher-quality steel for his clock springs. He was successful in his attempts and created what is known as cast steel.

The Bessemer process revolutionizes steel processing

However, in the case of both cast steel and blister steel, the cost of production was a large limiting factor. Here’s how our next innovators overcame this obstacle: In 1851, Sir Henry Bessemer and Willian Kelly began developing simple converters that used blasts of air to burn out the impurities and excess carbon in pig iron.

Though Kelly was the first one to successfully utilize the converter, Bessemer was quick to obtain a patent for this invention, calling it The Bessemer Process. Some believe there was a degree of deception involved with Bessemer’s ownership of this process, claiming that Bessemer took Kelly’s work, enhanced it and patented it.

Those who believed Bessemer acted unethically cited the following facts: Kelly was successful in using this process before Bessemer. In addition, Kelly lacked the financial resources needed to perfect the process for commercial use. Finally, Kelly was able to prove patent priority in 1857. Whatever the truth may be, this process is still known throughout the industry by the Bessemer name.

The Bessemer process holds great importance because it was the first inexpensive process developed to manufacture steel out of molten pig iron, prior to the advent of the open hearth furnace.

The Bessemer process was carried out by heating iron in a pear-shaped receptacle, the converter, as oxygen passed through the molten metal in order to release carbon dioxide. This increased the iron’s purity.

The process was fast and inexpensive, removing carbon and silicon from iron in a matter of minutes, but it removed too much carbon and left behind too much oxygen. Despite this, The Bessemer Process was a huge stepping stone. It led to industrialization around the world, and better living conditions as the use of steel was introduced into construction. It also advanced transportation as iron rails were replaced by more durable steel.

Refinements to the Bessemer process

In the late 1850s, British metallurgist Robert Mushet found the solution to Bessemer’s problem. Spiegeleisen is a compound composed of iron, carbon and manganese. The manganese removes oxygen from molten iron, while contributing carbon to it, thus solving the imbalance created by the early Bessemer process.

The problem that remained was removing phosphorus, an impurity that made steel brittle. In 1876, Welshman Sidney Gilchrist Thomas came up with the solution by adding limestone to the Bessemer process. The limestone separated the phosphorus from the usable iron, and the phosphorus was left behind with the slag in the furnace.

For the first time, iron ore from anywhere in the world could be used to make steel. As a result, prices for steel dropped more than 80% between 1867 and 1884. Also, because of iron casting, the steel industry continued to advance.

In 1879, The C.A. Lawton Co., then named The Novelty Manufacturing Company, was founded by C. A. Lawton and his uncle. Before the end of their first year in business, it had already developed an invention that would revolutionize flour making.

Seven years later, the budding company nearly shut its doors when the Jones Bank of De Pere went bankrupt. However, at the very last minute, the company was saved. Over the next 130 years, this little company developed innovations that brought electricity to rural farming areas, overcame the Great Depression, and integrated Lean into the business - even though they were told it couldn’t be done.

Ductile iron debuts

Ductile iron was developed by Keith Millis in 1943 and was awarded the patent on a cast ferrous alloy for ductile iron production via magnesium treatment in 1949. Ductile iron is produced from prolonged heat treatment and is used to manufacture gears, dies and many other machine parts.

Due to the unique structure of ductile iron, this metal has an important characteristic: While non-ductile iron has flakes of graphite, ductile iron has concentric layers of graphite that form nodules. These nodules give ductile cast iron the feel of spongy steel without the stress concentration effects that flakes of graphite would produce in non-ductile iron. These properties stop cracks in the material from spreading due to its higher ductility and tensile strength.

Austempered Ductile Iron (ADI) was created in the 1950s but was commercialized and achieved success some years later. ADI uses austenite in a process that allows the metallurgist to cast more complex shapes with more consistent quality at lower prices.
